Flexible PCB machine

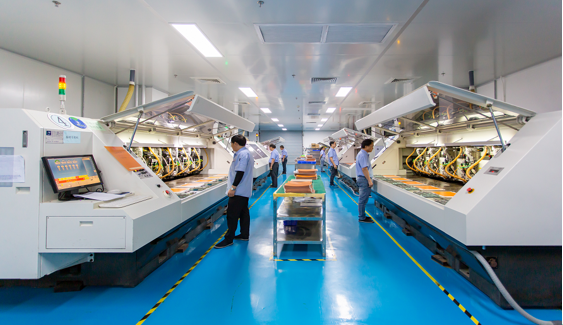

1. CNC drilling rig X12:
Minimum hole diameter: 0.1mm

Hole position accuracy: ± 50um

2. Multilayer board perspective X-R:
Processing plate thickness ≥ 0.036mm

Size: 250 * 220-620mm

3. Conductive film wire:
Processing PCB thickness ≥ 0.03mm
Size: ＞ 220mm

4. Automatic plate splicing machine:
Processing PCB thickness ≥ 0.03mm
Size: 250 * 220-620mm

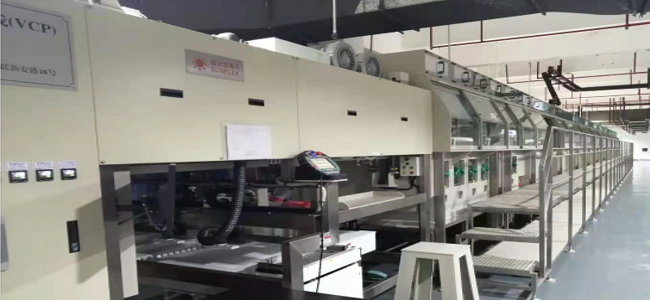

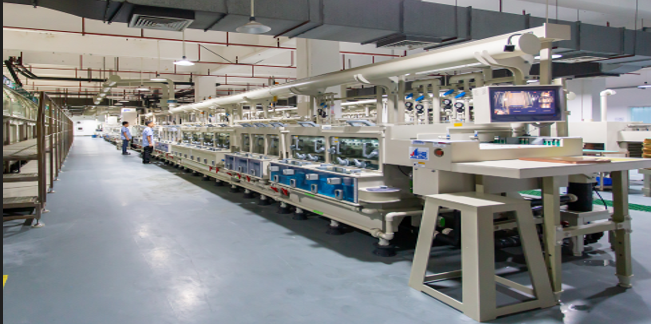

5. Full automatic VCP continuous electroplating line:
Processing PCB thickness ≥ 0.03mm
Size: ＞ 220mm

6. Automatic plate splicing machine:
Processing PCB thickness ≥ 0.03mm
Size: 250 * 220-620mm

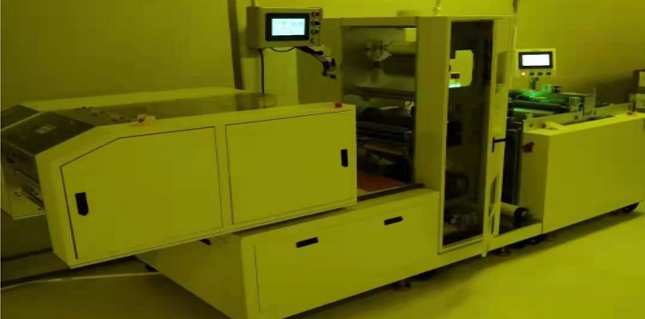

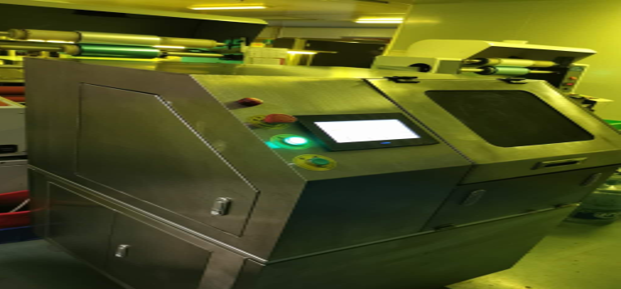

7. Roll to roll full-automatic film applicator:
Processing PCB thickness ≥ 0.03mm
Size: ＞ 220mm

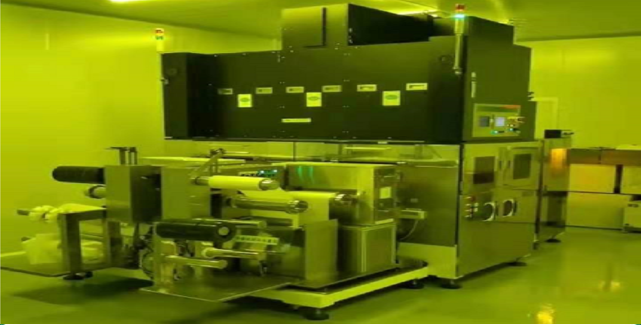

8. Biac roll to roll full-automatic exposure machine:
Processing PCB thickness ≥ 0.03mm
Size: 250 * 220-620mm

9. Automatic dry film applicator X1:
Processing PCB thickness: 0.05-5.0mm
Processing size: 250 * 620mm

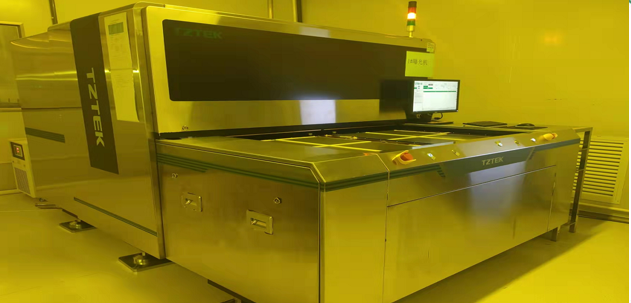

10. LDI automatic exposure machine: Tianzhu
Processing PCB thickness ≥ 0.03mm
Size: ＞ 220mm
Advantages: cancel film operation, reduce the impact of foreign matters and human alignment, and improve the yield.

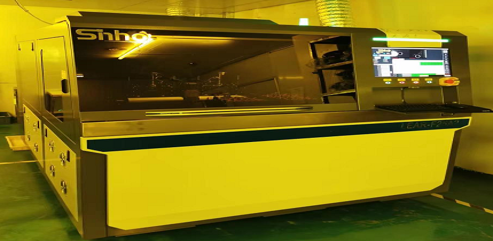

11. LDI exposure machine: Xinhao
Processing PCB thickness ≥ 0.03mm
Size: 250 * 220-620mm
Advantages: cancel film operation, reduce the impact of foreign matters and human alignment, and improve the yield.

12. Vacuum etching line: DES
Processing PCB thickness ≥ 0.03mm
Etching line width and line spacing: 0.035/0.035mm
Size: ＞ 220mm

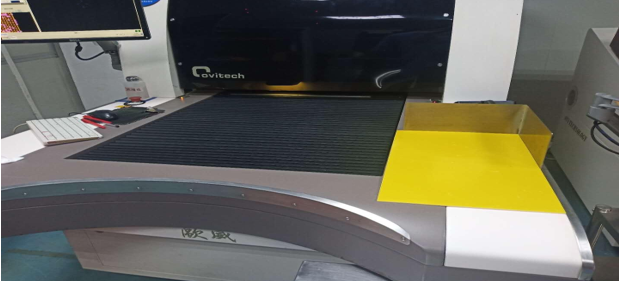

13. AOI optical scanner X3:
Processing PCB thickness: 0.05-5.0mm
Processing size: 250 * 620mm

14. AOI automatic board receiving and releasing machine:
Processing PCB thickness: 0.05-5.0mm
Processing size: 250 * 620mm
Advantages: reduce manual operation, reduce appearance defects and improve efficiency.

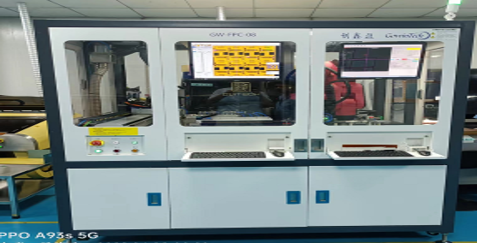

15.AOI inspection machine X6:
Processing PCB thickness:0.05-5.0mm
Processing size: 250 * 620mm

16. Automatic release machine for binding cleaning line:
Processing PCB thickness: 0.05-5.0mm
Processing size: 250 * 620mm

17. Fitting cleaning line:
Processing PCB thickness: 0.05-5.0mm
Processing size: 250 * 620mm

18. Automatic PCB collector of fitting cleaning line:
Processing PCB thickness: 0.05-5.0mm
Processing size: 250 * 620mm

19. Full automatic film pasting and covering machine: polishing
Processing PCB thickness ≥ 0.1-0.3mm
Size: 250mm * 430mm
Fitting accuracy: 0.1mm
Capacity: 2000PNL per shift

20. Full automatic film applicator: Keben
Processing PCB thickness ≥ 0.1-0.3mm
Size: 250mm * 430mm
Fitting accuracy: 0.1mm
Capacity: 2500PNL per shift
