  • Product description: Rogers 4350B DK 3.48 DF 0.0031 0.1-1.5mm High Frequency PCB Boards
  • INQUIRY

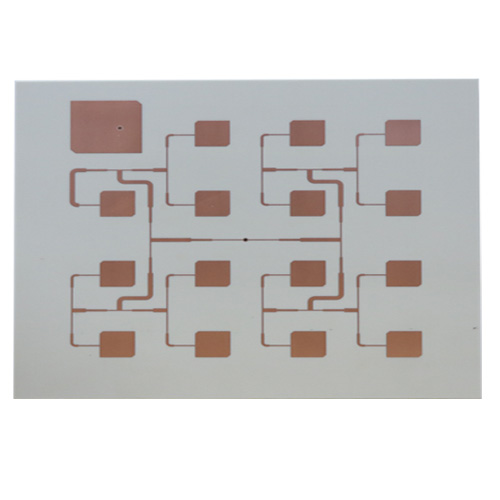

Rogers 4350B DK 3.48 DF 0.0031 0.1-1.5mm HIGH FREQUENCY PCB Boards


Specification:

Base material

Rogers 4350

Board THK

0.8mm

Layer

2

Board size

18*6cm

Surface finish

Immersion gold

Line space

6mil

Copper THK

1OZ

Line width

6mil

Parameter:

Product name: High frequency rogers 4350B PCB board Prototype

Multi-layer rogers 4350B Fabrication type:rogers4350+rogers4350,rogers4350+fr4

Layer No.

1-28

Material

Rogers 4350/4003/5880/3003/3006/6010/3010 Etc.

Board thickness

0.1-2.0MM

Standard material size

12*18 inch 18*24inch 48*36inch

Board thickness tolerance T≥0.8mm±8%,T0.8mm±5%

Wall hole copper thickness

0.025mm(1mil)

Finished hole

0.15mm-6.3mm

Min line width

4mil/4mil(0.1/0.1mm)

Min bonding pad space

0.1mm(4mil)

PTH aperture tolerance

±0.075mm(3mil)

NPTH aperture tolerance

±0.05mm(2mil)

Hole site deviation

±0.05mm(2mil)

Profile tolerance

±0.10mm(4mil)

Board bend&warp

≤0.7%

Insulation resistance

1012Ωnormal

Through-hole resistance

300Ωnormal

Electric strength

1.3kv/mm

Current breakdown

10A

Peel strength

1.4N/mm

Soldmask regidity

6H

Thermal stress

28820Sec

Testing voltage

50-300v

Min buried blind via

0.2mm(8mil)

Outer cooper thickness

1oz-5oz

Inner cooper thickness

1/2 oz-4oz

Aspect ratio

8:1

SMT min green oil width

0.08mm

Min green oil open window

0.05mm

Insulation layer thickness

0.075mm-5mm

Aperture

0.2mm-0.6mm

Special technology

Inpedance,blind buried via,thick gold,aluminumPCB

Surface finish

HASL,lead free,Immersion gold,immersion tin,immersion silver,ENIG,Blue glue,gold plating
