  • Product description: Thermal Clad Bergquist HT-07006 Aluminium PCB MC Printed Circuit Boards

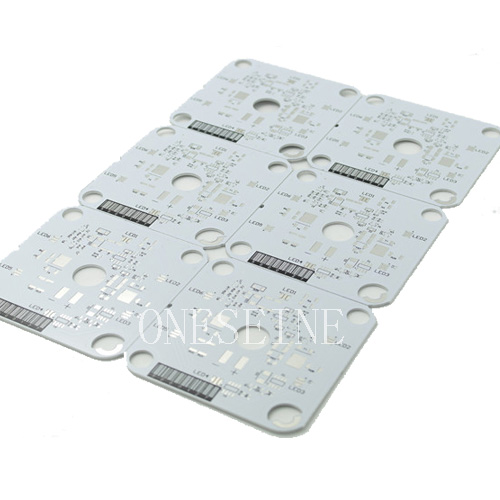

Thermal Clad Bergquist HT-07006 Aluminium PCB MC printed circuit boards


Basic information:


PCB board thickness:1.6mm

Surface finish:OSP

Material:Bergquist aluminium PCB material

PCB board size:7*5cm

Copper weight:2OZ

Solder mask:Green

Silk screen:White


Bergquist Thermal Clad printed circuit boards (PCB)

Description and Application

Bergquist Aluminum base copper-clad laminate have excellent flame retardant, high mechanical strength, dimensional stability etc. Especially it has very good heat sink, electromagnetic shielding and solder float.

It's widely used for the modifier and sparker on fire for motorcycle and mobile, power LED, sound box, power supply module and acoustics shielding system etc.

Bergquist HT-04503 Bergquist MP-06503 Bergquist HT-07006 Aluminium PCB, Aluminium printed circuit board, Aluminum PCB, Bergquist Aluminium base PCB, Bergquist Aluminium PCB, IMS PCB, LED PCB, Metal Core PCB, MCPCB, MPCB, High thermal conductivity aluminum pcb,  aluminium based copper-clad pcb board, Bergquist T-clad Mcpcb, Bergquist Aluminum Clad Laminate PCB

Metal core PCB and standard FR-4 are commonly used circuit board materials in conjunction with Power LEDs. Oneseine’s Thermal Clad dielectric is a thin, thermally conductive layer bonded to an aluminum or copper substrate for heat dissipation (see illustration below). The key to Thermal Clad’s superior performance lies in its dielectric layer.This layer offers electrical isolation with high thermal conductivity and bonds the base metal and circuit foil together. Other manufacturers use standard prepreg as the dielectric layer, but prepreg doesn’t provide the high thermal conductivity and resulting thermal performance required to help assure the lowest possible operating temperatures and brightest light output for high-intensity LEDs.Thermal Clad circuit board materials are available from Oneseine in three different thermal conductivities, High Power Lighting (HPL), High Temperature (HT) and Multi-Purpose (MP).


Bergquist HT-07006 is excellent aluminum pcb raw material.

Widely used in LEDs Lighting, Power supply and amplifier etc products.

Thermal conductivitly 2.2 W/m.k

Dielecttic Thickness: 76um(3mil)

Breakdown AC: 8.5KV

Oneseine manufacturing quality Bergquist HT 07006 PCBs with short lead time

For many cusotmers in the world.

Raw material: In stock


Formable Thermal printed circuit board Solutions


A unique proposition is Formable Thermal LED PCB Solutions. Unlike brittle ceramic or epoxy systems, the dielectric is formulated using a flexible thermally loaded material.


This allows component placement using standard paste and reflow techniques, the board is formed to shape after assembly giving a one piece system removing the need for interconnecting wires.


Thermal Clad PCB Material:






Thermal Clad PCB Specifications

1 & 2 Layer Dielectrics

Up to 5 oz finished Cu

Al and CU base material up to .250" thick

HASL, ENIG and Pb Free HASL finish available


Bergquist Aluminium Thermal Clad PCB Benefits

Lower Operating Temperatures

Improved Product Durability

Increased Power Density

Increased Thermal Efficiency

Reduced Number of Interconnects

Lower Junction Temperatures

Reduced PCB Size

Eliminates Older Hardware

Minimizes Labor Required for Assembly

Wide Variety of Form Factors

Minimize Thermal Impedance
