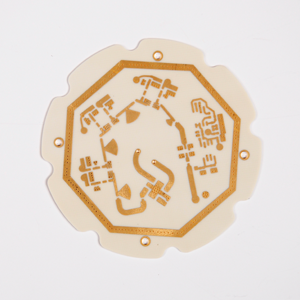

High Frequency Substrate Rogers 3010 PCB Board Fabrication

rogers 3010
high frequency pcb
PCB Fabrication
pcb board
Product description: rogers pcb price rogers pcb manufacturers rogers pcb prototype rogers pcb calculator rogers pcb fabrication rogers pcb dielectric constant rogers pcb material dielectric constant rogers pcb Chi
INQUIRY

Detail Product Description:

Base material	Rogers3010 0.635MM	Product name	High frequency pcb fabrication
Layer	2	Copper thickness	1OZ
Board thickness	0.8MM	Surface finish	Gold plating
Min line width	0.1mm	Min line spacing	0.1mm
Rogers material	3010	Service	Rogers pcb fabrication
Application	telecommunication	Board size	6*9CM

Printed Circuit Board Fabrication:

PCB fabrication technology can be divided into single-sided, double-sided and multi-layer PCB

PCB Fabrication machine:

◆Cut machine

◆ Line exposure machine

◆ Etching line

◆ Drilling machine

◆ Plating line

◆ Screen printing machine

◆ Optical Inspection Machine

◆ Brown line

◆ Fully automatic laminator

◆ Molding machine

◆ Electric testing machine

◆ Immersion gold production line

The thickness of pcb fabrication

Multi-layer PCB thickness of the stack, a direct impact on the control of the impedance.

Finished board thickness, affect the accuracy of the assembly.

The thickness of the copper foil affects the heat dissipation and the DC resistance of the current.

Many years experience of pcb fabrication

Over than 10 years

Some Typical Applications:
• Automotive radar applications
• Global positioning satellite
antennas
• Cellular telecommunications
systems - power amplifi ers and
antennas
• Patch antenna for wireless
communications
• Direct broadcast satellites
• Datalink on cable systems
• Remote meter readers
