16 Layer Fr4 PCB Multilayer Printed Circuit Board Prototype Manufacturer

16 Layer Fr4 PCB Multilayer printed circuit board Prototype Manufacturer

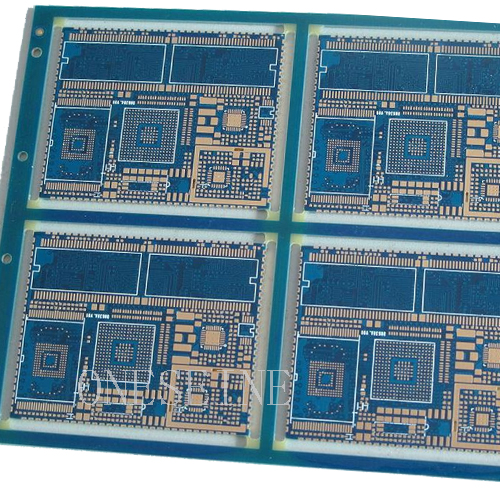

PCB Basic information:

Layer:16

Name:Multilayer PCB printed circuit board

Special:buried blind vias

Surface finish: Immersion gold

Copper weight:1OZ

Solder mask:Blue

BGA: yes

PCB Files

Based on the software we use to process all orders, we accept the following PCB files as compressed zipped folders with all necessary files included: Gerber, ODB++, We also accept .pcbdoc files and .brd files from PCB Creator software, which we can then export as Gerber data. These PCB files must include a minimum of the following: all copper layers of the board, a drill file, and an outline layer, which may need to be exported separately.

Gerber files 274X files, NC drill files

Bottom copper layer ; Top copper layers; Inner layer1( for multi-layers); Inner layer2 (for multi-layers); silkscreen top; silkscreen bottom (if you have); top solder mask and bottom solder mask; Border layer( Layer used to define the shape of the board).

Multilayer PCB Capability:

Material: FR4, Al Aluminum base,copper base, Halogen Free material, Flexible PCB FPC etc.

Layer counts: 1-16 layers, (Normaly is double side and Multilayer PCB)

Finished Copper Thickness: 0.5-8 OZ

Finished Board Thickness: 0.2-4.0mm

Min. Line/Track Width: 3mil

Min. Line/Track Space: 3mil

Min. Contour Tolerance: +/-0.1mm

Min. Finished Diameter of PTH Hole: 0.1mm

Max. Board Thickness/Hole Ratio: 12:1

Min. Solder Mask Bridge: 4mil (Min. SMT Pad Space 8mil)

Min. Legend(Silkscreen) Track Width: 5mil

Min. Legend(Silkscreen) Height: 30mil

Min. drilling slot size: 0.6mm

Solder mask color: green, black, blue, white, yellow and grey, etc.

Legend/Silkscreen Color: white, yellow, black, etc.

Surface Treatment: HAL, Lead Free HAL, Immersion gold, OSP, Immersion tin, Immersion silver, etc.

Other Technology: Gold finger, peelable mask, Non-across blind/buried vias, characteristic impedance control, Rigid-flex board etc.

Reliability Test: flying probe test/fixture test, impedance test, solderability test, thermal shock test, hole resistance test, and micor metallographic section analysis, etc.

Flammability: 94V-0

High Density PCB, Impedance control PCB, Buried & Blind Via, Gold Finger PCB, Gold Plating PCB,Immersion Golden surface, HASL surface. Heavy Copper PCB, Rigid-flex PCB,Halogen Free PCB, High TG PCB(High Temperature PCB), HF PCB(HIGH FREQUENCY PCB),,Aluminum PCB, Copper PCB, Steel PCB.
