  • Product description: Customized Immersion Gold 6 Layer Rigid-flex PCB From Shenzhen Manufacture
  • INQUIRY

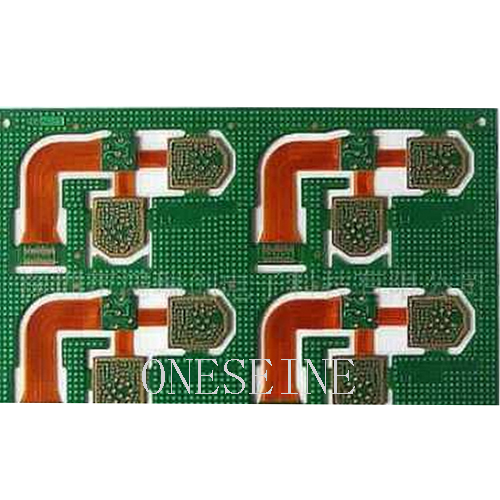

Customized Immersion Gold 6 Layer Rigid-flex PCB From Shenzhen Manufacture

Quick details:

Number of layer:6

Board thickness:1.2mm

Brand: ONESEINE

Sample order:Acceptable

Application: Electronics products

Surface finish:Immersion gold

Item:rigid-flex PCB boards


Our Services

Our Services

We are able to provide you best electronics services We are able to provide you best electronics services.

1)    PCB Production

2)    Service.(FR-4,HI-TG,Aluminum,FPC,TEFLON,Rogers,CEM-1 )

2)       FPC,PCB Copy Service.

3)       PCB Assembly Service. (SMT, BGA, DIP)

4)       IC program with HEX file.

5)       PCBA Housing assembly serivce.

6)       PCBA Final Functional Testing.

7)       PCBA Copy Service.

8)       Electronic Components Purchasing & BOM List Purchasing Services.

9)       PCB SMT Stencil. (Laser cut & Etching)

10)     Cable assembly


Why us ?

1)  Professional engineer team --help you to check design and do engineering before production

2)  Rich expierences in pcb production industry--provide high quality and competitive price pcb.

3)  After-sales service--every problem you have will get our professional advice and solution.

4)  Constant follow up-- make us have the fast reaction of your requirement.

5)  Inspected by the Inspection Institution--ISO,UL,ROHS cerfiticated


Process Capability

1) Bare Printed Circuit Board Process Capability:

1

Layers

Single Sided,2 to 18 Layer

 2

Board material type

FR4,CEM-1,CEM-3,ceramic substrate board, aluminum based board, high-Tg, Rogers and more

 3

Compound material lamination

4 to 6 layers

 4

Maximum dimension

610 x 1,100mm

 5

Dimension tolerance

±0.13mm

 6

Board thickness coverage

0.2 to 6.00mm

 7

Board thickness tolerance

±10%

 8

DK thickness

0.076 to 6.00mm

 9

Minimum line width

0.10mm

10

Minimum line space

0.10mm

11

Outer layer copper thickness

8.75 to 175µm

12

Inner layer copper thickness

17.5 to 175µm

13

Drilling hole diameter (mechanical drill)

0.25 to 6.00mm

14

Finished hole diameter (mechanical drill)

0.20 to 6.00mm

15

Hole diameter tolerance (mechanical drill)

0.05mm

16

Hole position tolerance (mechanical drill)

0.075mm

17

Laser drill hole size

0.10mm

18

Board thickness and hole diameter ratio

10:1

19

Solder mask type

Green, Yellow, Black, Purple, Blue, White and Red

20

Minimum solder mask

Ø0.10mm

21

Minimum size of solder mask separation ring

0.05mm

22

Solder mask oil plug hole diameter

0.25 to 0.60mm

23

Impedance control tolerance

±10%

24

Surface finish

Hot air level, ENIG, immersion silver, gold plating, immersion tin and gold finger

www.oneseine.com

Contact Us

Contact: Ms Tracy

Phone: 0086 18682010757

Tel: 0086 18682010757

Add: BludingA,Shixiaganglian Industrial Park,Shajing,Baoan,Shenzhen,China
