Rogers 3006 Boards 6.15 Dielectric Constant PCB Manufacturer and Supplier

Rogers 3006 Boards 6.15 Dielectric Constant PCB manufacturer and Supplier

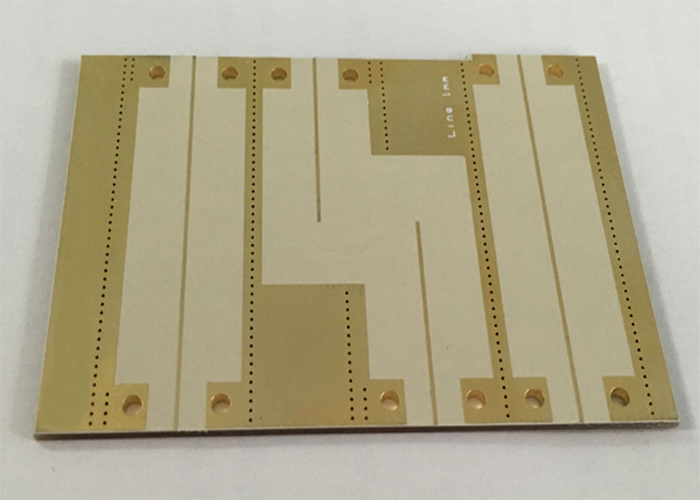

Quick detail:

Layer:2

Material:Rogers3006 0.254mm,datasheet check here

Board size: 13.5*16.9CM

Surface finish: Immersion gold

Copper Weight: 1OZ

Solder mask: yellow

Silk Screen: White

Delivery time: Sample for 3 days, Mass production

Rogers 3003 / 3006 raw material information:

RO3000 pcb circuit boards

RO3000  high frequency circuit materials are ceramic-filled PTFE composites intended for use in commercial microwave and RF applications. This family of products was designed to offer exceptional electrical and mechanical stability at competitive prices.

RO3003 excellent stability of dielectric constant over temperature including the elimination of the step change in dielectric constant, which occurs near room temperature with PTFE glass materials. Additionally, RO3003 laminates exhibit a low dissipation factor of 0.0013 at 10 GhZ.

Rogers 3003 material Standard Thickness

RO3003/RO3035: 0.005” (0.13mm) 0.010” (0.25mm) 0.020” (0.50mm) 0.030” (0.75mm) 0.060” (1.52mm)

RO3006/RO3010: 0.005” (0.13mm) 0.010” (0.25mm) 0.025” (0.64mm) 0.050” (1.28mm)

Rogers 3003/3006/3010/3035 PCB laminate standard panel size:

12” X 18” (305 X 457mm) 24” X 18” (610 X 457mm)
