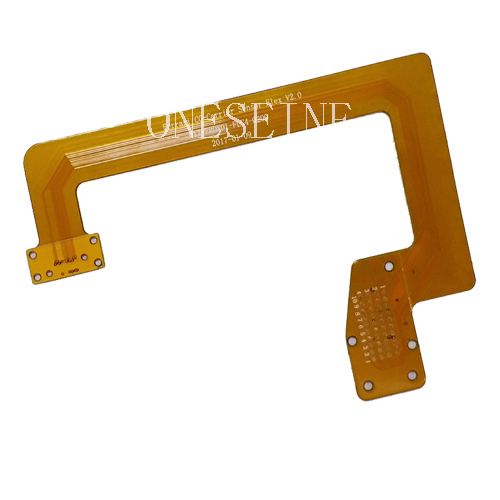

4 Layer FPC soft board

flexible pcb
4 Layer
flexible printed circuit
flex circuit
Product description: flexible pcb material flexible printed circuit board flex pcb manufacturer flex pcb material rigid flex pcb manufacturer flex circuit board flexible pcb board rigid flex board
INQUIRY

Product category: FPC multilayer board

Basic parameters: application: machinery and equipment

Type: four-layer FPC soft board

Minimum drilling hole: 0.2mm

Minimum line width/line spacing: 0.1mm/0.1mm

Finished product thickness: 0.3+/-0.05mm

Reinforcement: 0.4mmFR4 reinforcement on both sides

Process requirements: differential impedance is 90 ohms+/- 10% ohms

Surface treatment: gold deposit (120 mm thick nickel; 1 mm thick gold)

Other: Expedited sample 24-48 hours/sample 1-3 days
