2 Layer Rogers 6006 / 6010 HF PCB Printed Circuit Boards

2 Layer Rogers 6006 / 6010 HF PCB Printed Circuit Boards

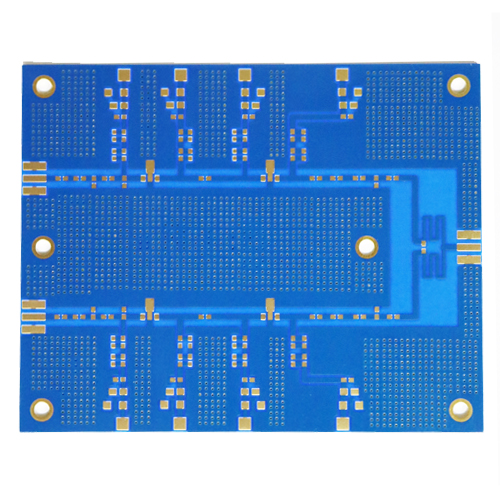

Rogers PCB information:

Material:rogers6010 0.635MM

DK:10.2

Layer:2

Surface finish: immersion gold

Application:Microwave / RF field

Board thickness:0.8MM

Min lind width and space:8mil

Min hole:0.3MM

Features and benefits:

• High dielectric constant for circuit size reduction

• Low loss. Ideal for operating at X-band or below

• Low Z-axis expansion for RT/ duroid 6010LM. Provides reliable

plated through holes in multilayer boards

• Low moisture absorption for RT/duroid 6010LM. Reduces effects of moisture on electrical loss

• Tight and thickness control for repeatable circuit performance

Rogers 6006 / 6010 information:

RT/duroid 6006/6010LM microwave laminates are ceramic-

PTFE composites designed for electronic and microwave circuit

applications requiring a high dielectric constant. RT/duroid 6006

laminate is available with a dielectric constant value of 6.15 and

RT/duroid 6010LM laminate has a dielectric constant of 10.2.

RT/duroid 6006/6010LM microwave laminates feature ease of fabrication

and stability in use. They have tight dielectric constant and thickness

control, low moisture absorption, and good thermal mechanical stability.

Standard tolerance dielectric thicknesses of 0.010”, 0.025”, 0.050”, 0.075”,

and 0.100” (0.254, 0.635, 1.270, 1.905, 2.54 mm) are available. When

ordering RT/duroid 6006 and RT/duroid 6010LM laminates, it is important

to specify dielectric thickness and weight of copper foil required.
